Thursday, December 30, 2010

Test Frame

It's time to build a test frame.  I collected some appropriate tubes and substituted some 1.75" OD for the BB and head tube.  Step one (well, actually about step 17) is to miter the tubes to fit in the jig.

Here I fit the head tube to the jig with the new oversize locating cones.


Below you can see the mill mounted belt sander in action cutting the DT to HT joint.  I hold a shop vac with a fine particle bag installed next to the belt/tube to catch the carbon and epoxy dust.


I built the mitering fixture so the tubes could be removed with both the holding blocks locked in place, one on each end of the tube.  This allows me to test fit tubes in the jig and return them to the mill in the same location if further cutting is required.  Here you can see the DT with it's holding block in the jig.


The finished BB joint with the other miter block shown.


The front triangle fit in the jig.  Next step will be to miter and fit the rear end.

Sunday, December 12, 2010

Break Time II

After the side load I tested the in plane bending (trying to pull the joint apart in the the plane of the frame).  I used split blocks to support the ends of the tube and a 4' solid steel pry bar to apply the load.



 I applied almost 1/2 my body weight to the joint about 4 feet from the support block.  So, the joint was under 300+ ft-lb of torque.  After alternating this load in opposite direction a few times there was a cracking sound and this small flap of carbon pulled free.  Also, a small crack curved under and along the joint fillet..


One good hard heave (probably over 400 ft-lb) and the joint cracked further.


Eventually if failed completely...

Break Time

video
First you'll notice the custom patent pending "distributed loading system" employed for this test.  I stood on the test joint suspended between two frame tube blocks.  This resulted in 170lbs being applied.  Nothing happened.  I then pulled up on the nearby work bench and applied more load...and more until I could not pull any harder.  Other than a tiny deflection there was no damage.  Repeating this later with a bathroom scale sent the needle off dial over 340lbs.  So, 350lb sideways load test passed.

Sunday, December 05, 2010

Finished Finishing?

I hand sanded with 240grit emery strip then used a cloth buffer wheel to smooth out the surface. Not perfect but good enough to prove I can produce a good looking joint with practice.


When it's wet you can see the uni-directional carbon finish. It would look good if it was clear coated.

Epoxy "Painted" Joint

Here is the test joint after initial sanding with a coat of clear laminating epoxy "painted" over the surface. I will sand this down until it's smooth or I hit carbon (when the sanding dust turns from white to black).

Friday, December 03, 2010

Sanded Joint

I quickly sanded the joint to take off the epoxy flash and the high points etc. I didn't take too much off so I would not cut away fibers.

I'm going to "paint" the joint with clear epoxy and sand that to get it cosmetically smooth. The top side of the joints turned out well with little sanding. The underside had a void in one area that will have to be filled.


Once I make it all pretty it's time to break it...

Unsanded Joint

Here is the joint after pulling off the vacuum bag and unwrapping the release cloth and tape. Seems to be good compression this time with a just a few small voids at the root of the underside fillets.
This side (that was facing up in the oven) did not seem to be as compressed. It lacks the even pattern from the release cloth you can see on the other side. It appears well consolidated though.

Thursday, December 02, 2010

Vacuum Bagging

After reading about Nick Crumpton's methods here
http://www.velocipedesalon.com/forum/f26/carbon-building-18058.html
I decided to try to bag the whole joint this time and not seal off on the tubes. You can see little wood caps taped on the tubes I put there to keep the bag from sucking in and breaking.
This is at 20 inHg and it went to 26.5 inHg before it went in the oven.

Here it is resting on a block of wood ready to bake.

Seat Cluster Test

I'm trying larger fillets (Aeropoxt Light fairing compound) over the glued joints to see how the carbon layup works with them.

Here are the first few layers of 150g/m^2 unidirectional prepreg being applied.



And here is a the finished joint. I tried to be aware of the final cosmetics of the joint as I went. Time will tell how it looks and performs after it come out of the oven.

Sunday, November 21, 2010

Out of the Oven

Here is the joint out of the oven. It sat at 200F for 2 hours after ramping up for 30 minutes. The bag, release ply etc peeled off fairly clean but I'll use some flash break tape next time to keep the tubes clean in the first place. You can see in the photo below I had some bag pressure issues. A small hole developed right at the inlet tube and the pressure was 15-20inHg (or about 10pis) when I it took it out of the oven. The shiny area is where the release ply was not being pressed into the joint.

On the top side though, the joint is well compacted and solid. I found that tapping on the joints tells you a lot. You can tell the uncompressed areas by sound alone.


While not pretty yet (these are un-sanded) and not fully compacted the main tube joints feel strong and stiff. Destructive testing and cutting it apart will tell the whole story though.

Joint Test Vacuum Bag

Here is a BB test joint I've prepped for the oven. I used 3 pieces of Stretchlon 250 bag material and 350F rated bag tape. Under the tape is release cloth with a very fine weave, then the carbon prepreg layers. You can see the UHMW plugs I use in the BB to run the bag and seal tape onto.


It took about 10 minutes to get all the leaks sealed and I was able to pull 26mmHg on the pump. The bag did it's job and stretched nicely into the fillets. The release cloth appears to be enough of a bleed layer on a bag this small, everything was pulled down tight.

Friday, November 05, 2010

Head Tube Cure and Finish

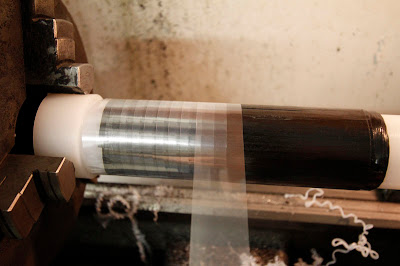

After applying 10 layers on the mandrel I used the lathe to hold the it in place and slowly turned it by hand to apply the release coated shrink tape. I'm carefully overlapping 75% with the previous turn for better compressive force and a smoother ridge free finish.

Into the oven it goes...


Here it is straight out of the oven with the shrink tape removed. Notice the left hand end, that's where the masking tape holding the shrink tape in place let go and allowed it to slip. Good thing I made the tube a little longer than required.


Back in the lathe I hand wet sand the outer surface and square the ends with the lathe tooling. Wet sanding eliminates the dust issue (as long as you protect the lathe from the splashing).



The finished headtube. It is ridiculously stiff and weighs 50.3 g.

Head Tube Layup

After calculating the thermal expansion of UHMW for the temperature delta of the cure process I decided to layup a headtube for Chris King InSet headset press fit ID of 44mm.

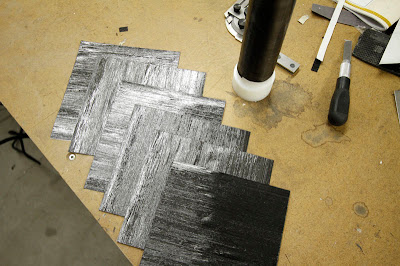

You can see the layers below, 10 in total, alternating between 0 deg and 90 deg.


The next two photos show the wrapping process as the carbon sticks to the previous layer and the backer is peeled away. Working in the shop around 50F I had to use a heat gun to increase the tack level of the prepreg in order to get the wraps to stick and conform.


The finished layup ready to shrink tape.

Thursday, October 07, 2010

Tube ID

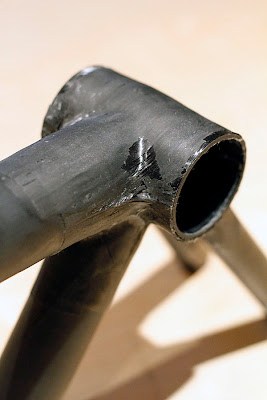

The tube ID turned out nicely. The fine groove from turning on the lathe was clearly reproduced as well. It will need more layers to be an effective BB shell tube. This process may even work for custom layup frame tubes as well.

Press30 Tube

Here is the finished tube (test) for a Press30 BB. I need to adjust the mandrel OD to account for the thermal expansion of the UHMW but other than that, the process worked as planned. I might even be able to use 90deg fibers and not have it stick to the mandrel.

UHMW Mandrel



I tried unsuccessfully to lay up a head tube on a turned polished aluminum mandrel. Even with 3 layers of high temp release wax, post cure the carbon would NOT come off the mandrel. Back to the drawing board. Next I conducted a test using UHMW as a mandrel. It has a higher coefficient of thermal expansion than aluminum and nothing sticks to it (at least not epoxy). It turns up in the lathe nice and smooth and the 250F cure temp has no lasting effect on it.

Sunday, September 19, 2010

(un)Finished Product

I got the joint unwrapped, pulled off the melted vacuum bag the removed the peel ply. Where it had been compressed the layers were well compacted and had a fine woven impression in the surface from the peel ply. Where the vacuum had failed the fibers were not fully compacted during cure. Looks a little rougher than I'd like but with practice I should be able to tidy it up. Lesson learned, try cure at 200F for 2 hours instead of 250F for an hour.

They Really Mean 250F

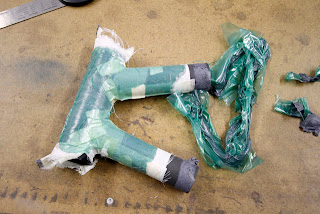

Ok, lesson #1 the hard way. Apparently when they rated Stretchlon 200 for 250F they really meant it. I had the joint in the oven with the pump running steady at 25mm Hg. The temperature was ramping up slowly and everything looked good. I noticed the pump speed change right around 240F, glanced over and saw the needle falling on the vacuum gauge. I opened the oven door and head a hissing sound. Doh! The bag had failed where it was most highly stretched in the joint fillet areas. I left the joint in place to fully cure.

Vacuum Bag

This is the joint wrapped in Stretchlon 200, a high stretch vacuum bag. I chose this because it makes it easier to achieve smooth compression, avoid pleating etc. I was able to get 25mm of Hg or about 12psi.


Peel Ply

To vacuum bag a joint you have to apply peel ply over the carbon. It's a fine release coated fabric that can be removed from the cured epoxy. I was trying to minimize wrinkles under the vacuum bag.

Layering

Here is an example of the layering process for a joint. I still have to work on making them neater and record the actual layup schedule etc. Trying to get most of the support fibers to be as long as possible and wrap around the head tube.

Prepreg Test Layup

Completed another test of prepreg layup. This time it was used to test vacuum bagging the joint while in the oven curing. Below shows the first few pieces of uni-directional carbon being applied. The lower one wraps all the way around the head tube.

Tuesday, September 14, 2010

Tube-to-Tube Fillets

For these test joints I'm going to use a light weight, high strength fairing compound to add small fillets to the tube joints. The theory is that the carbon won't be making sharp radius turns when it's compressed against the joint. I know "filler" is frowned upon so we'll have to see how the joints perform with it. The photo below is as it was applied, prior to sanding. When finished the fillets will be less than 1/4" radius and the tubes clear of excess material.


The filler used in all the joints depicted below weighs less than 12g prior to sanding.

Preparing to Vacuum Bag

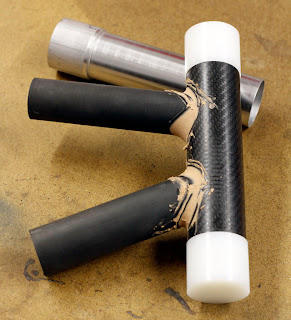

In order to vacuum bag the joints I need to extend the ends of the exposed head tube ends as well as the BB width. That way I can extend the vacuum bag compressed area beyond the ends of the tube. I turned some plugs from UHMW plastic rod since most glues just don't stick well to it. Any expoxy that might migrate onto them during cure "should" (he said hopefully) not stick.


In the background is a turned aluminum tube mandrel. I'm going to attempt to lay up a head tube for use on a frame with 44mm Chris King In-Set headset cups. It was turned with a very slight taper, polished and coated with high temp release wax. In theory a quick dunking in ice water when it comes out of the oven should let the carbon tube slide off...time will tell.
